VFD580 110KW 380V Support AC asynchronous and permanent magnet synchronous motor, servo motor
1. Product Description:
Veikong releases VFD580 series with all-round functions
The newly released VFD580 series from Veikong is a one-stop solution for motor control. Developed to be compatible with both IM and PMSM motors, this series is equipped with all-round functions for better performance. It offers excellent safety features with the inclusion of the STO function for providing protection to the operator and equipment.
The VFD580 series offers a great deal of flexibility in terms of communication with the addition of communication options such as RS485, Canopen, and Profinet. It is suitable for different special applications, for example, the fly shear. This feature further adds to the versatility of the device.
In conclusion, the VFD580 series is an optimal choice for industrial applications that require reliability, safety, and ease-of-use. The multiple features packed into this series ensure maximum efficiency when it comes to motor control.
2. VFD580 series control circuit terminals
| Type | Terminal symbol | Terminal name | Terminal function description |
| Analog input | VREF | Analog input reference voltage | VREF can choose 10V or 15V, switch between 10V and 15V of VREF throughthe "VREF" toggle switch, the factory default is 10V 10V3%, |
| 10V+3%,15V+3% |
The maximum output current is 30mA, that is, the recommended external
potentiometer resistance range: 1K~51K |
| GND | Analog input ground | Internally isolated from COM. 0V |
| AI 1 | Analog input 1 | Only input voltage:-10V~10V :Impedance 20K |
3. Series description
| Model | Rated output current | Applicable motor | Size | Brake unit |
| Three phase :400V |
| VFD580/586-2R2-T4B | 5.6A | 2.2KW | SIZE A | Standard built-in |
| VFD580/586-4R0-T4B | 9.4A | 4.0KW |
| VFD580/586-5R5-T4B | 13.0A | 5.5KW |
| VFD580/586-7R5-T4B | 17.0A | 7.5KW | SIZE B |
| VFD580/586-011-T4B | 25.0A | 11KW |
| VFD580/586-015-T4B | 32.0A | 15KW | SIZE C |
| VFD580/586-018-T4B | 37.0A | 18.5KW |
| VFD580/586-022-T4B | 45.0A | 22KW |
| VFD580/586-030-T4B | 60.0A | 30KW | SIZE D |
| VFD580/586-037-T4B | 75.0A | 37KW |
| VFD580/586-045-T4 (B) | 90.0A | 45KW | SIZE E | Optional built-in |
| VFD580/586-055-T4 (B) | 110.0A | 55KW |
| VFD580/586-075-T4 (B) | 152.0A | 75KW | SIZE F | Optional built-in |
| VFD580/586-090-T4 (B) | 176.0A | 90KW |
| VFD580/586-110-T4 | 210.0A | 110KW | SIZE G | Circumscribed |
| VFD580/586-132-T4 | 253.0A | 132KW |
| VFD580/586-160-T4 | 304.0A | 160KW | SIZE H |
| VFD580/586-200-T4 | 380.0A | 200KW | SIZE I |
| VFD580/586-220-T4 | 426.0A | 220KW |
| VFD580/586-250-T4 | 465.0A | 250KW |
| VFD580/586-280-T4 | 520.0A | 280KW | SIZE J |
| VFD580/586-315-T4 | 585.0A | 315KW |
| Model | Rated output current | Applicable motor | Size | Brake unit |
| Single phase/Three phase :220V |
| VFD580/586-0R7-S2B (T2B) | 5.6A | 0.75KW | SIZE A | Standard built-in |
| VFD580/586-1R5-S2B (T2B) | 8.0A | 1.5KW |
| VFD580/586-2R2-S2B (T2B) | 10.6A | 2.2KW |
| VFD580/586-4R0-S2B (T2B) | 17.0A | 4.0KW | SIZE B |
| VFD580/586-5R5-S2B (T2B) | 25.0A | 5.5KW |
| VFD580/586-7R5-S2B (T2B) | 32.0A | 7.5KW | SIZE C |
| VFD580/586-011-S2B (T2B) | 45.0A | 11KW |
| VFD580/586-015-S2B (T2B) | 60.0A | 15KW | SIZE D |
| VFD580/586-018-S2B (T2B) | 75.0A | 18.5KW |

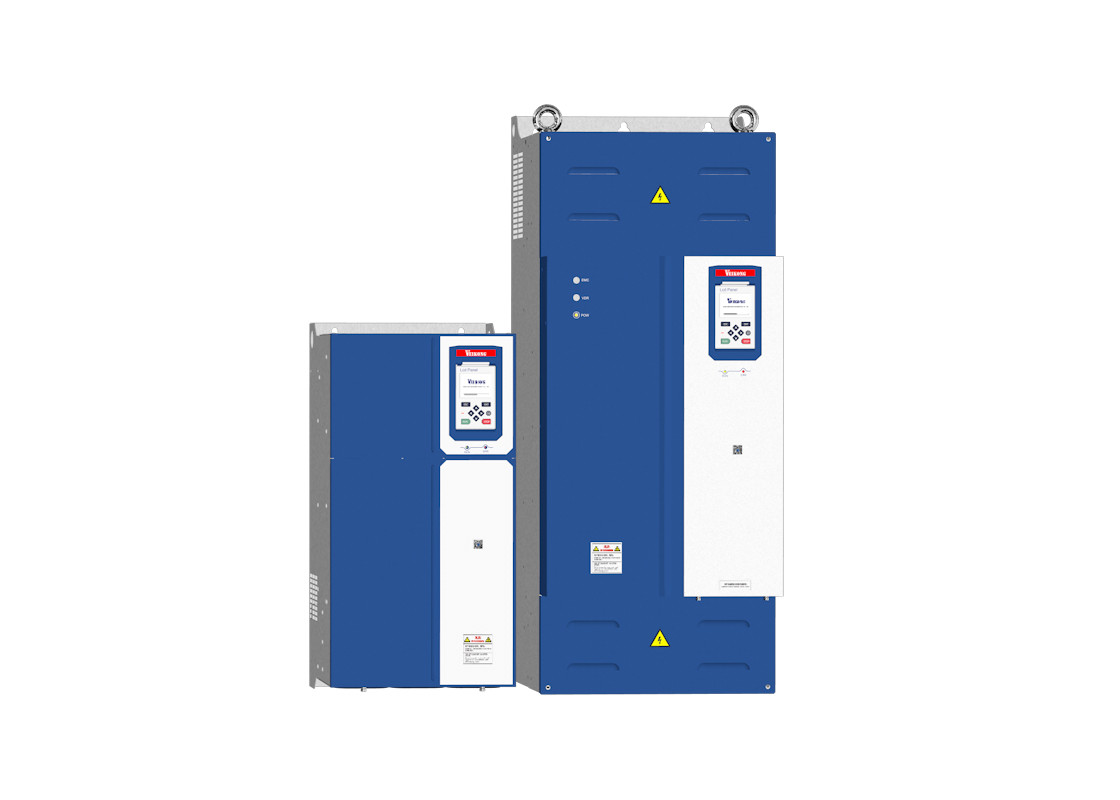

4. VFD580 product images
5. FAQ
1. Can you accept to use our logo?
we accept OEM production.
2. How can i get the after-service?
Our R&D team with more than 20 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
3. How about your products quality inspection?
We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.
